HYAS Series

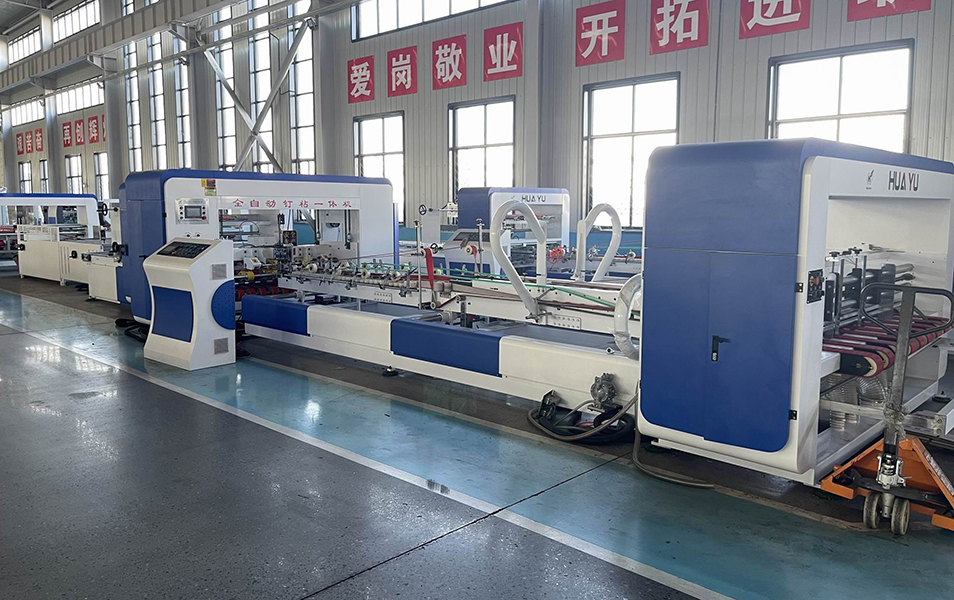

Automatic Carton Box Stitching Machine
Used for carton box stapling
Features
- Automatic control: This carton box stitcher streamlines the stitching operations with its automatic control, making order changes and operation easy.
- Advanced PLC system: The entire machine is managed by a PLC control system, paired with a user-friendly touch screen interface for smooth human-machine interaction.
- Reliable paper feeding: The cardboard stitched features a vacuum absorption feeding method, supported by a belt, to guarantee steady and accurate paper conveying through the carton box stitcher.
- High-speed stitching head: Equipped with a Taiwanese brand stitching head that allows for rapid processing, reaching speeds of up to 600 nails per minute.
- Flexible nail spacing: Our carton box stitching equipment can adapt to various box specifications by offering a range of nail distances from 30mm to 120mm
- Single and double nail stitching: Designed to perform single and double nail stitching in one pass, it caters to diverse packaging needs and customer preferences.
Technical Parameters
| Max. sheet size | 2500mm |
| Min. sheet size | 750mm |
| Max. carton length | 800mm |
| Min. carton length | 220mm |
| Max. carton width | 780mm |
| Min. carton width | 150mm |
| Max. sheet height | 1200mm |
| Min. sheet height | 300mm |
| Max. flap size | 350mm |
| Max. flap size | 50mm |
| Max. width of tongue lock | 40mm |
| Stitch pitch | 30-120mm |
| Number of stitches | 0-99 |
| Stitching speed | 600 stitches/min |
